dc SQUID gradiometer
GRAD 2D-10

Lg = 100 pH, Ic = 10 mA
pick-up loop size: 2 mm dia.
base-line length 10 mm


dc SQUID gradiometer
GRAD 3X3-15

Lg = 100 pH, Ic = 10 mA
pick-up loop size: 3 mm by 3 mm
base-line length 15 mm

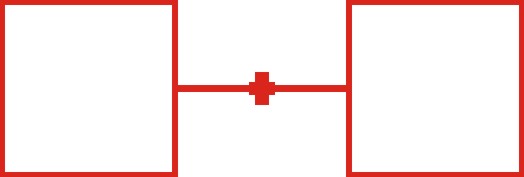

dc SQUID gradiometer
GRAD 10X10-20

Lg = 100 pH, Ic = 10 mA
pick-up loop size: 10 mm by 10 mm
base-line length 20 mm



Lg is the SQUID (being a gradiometer itself) inductance and Ic the critical current of the SQUID.  Other values are available on request.  The data listed above are typical values.  Some parameters are likely to vary slightly.
